Insert Table with Kupu

by Olha Pelishok last modified 2010-05-18

This article applies to Kupu 1.4 and Plone 3.0, Plone 2.5, Plone 2.1

We recommend you to watch Insert Tables with Kupu screencast.



The Kupu text editor allows you to add tables to the Plone document with the help of insert-table button on the Kupu toolbar:

toolbar-table

Clicking this button launches the Insert Table dialog, where you can choose the class of the table, number of rows and columns, and the availability of headings in the table:

table-dialog

Let's choose the table class - invisible grid, number of rows - 2, number of columns - 3, and select the availability of table headings. Then put some text into each cell - numbers. What we get is:

heading1 heading2 heading3
one two three
four five six



and the HTML code generated will look:

<table class="invisible">

<thead> <tr> <th>heading1</th>

<th>heading2</th>

<th>heading3</th> </tr></thead>

<tbody> <tr> <td>one</td>

<td>two</td>

<td>three</td> </tr>

<tr> <td>four</td>

<td>five</td>

<td>six</td> </tr>

</tbody>

</table>

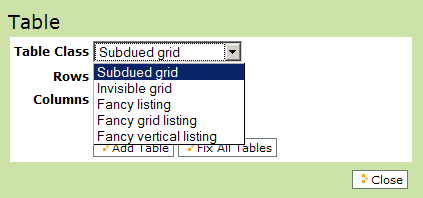

To have differently looking tables, there is a possibility to choose (apart from Invisible grid table class) between Subdued grid, Fancy Listing, Fancy grid listing and Fancy vertical listing table classes:

table-class

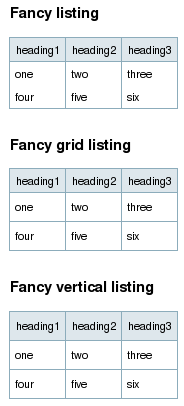

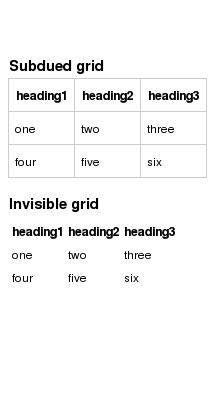

Here are the examples of how the same table looks with different Table Classes selected:

all-classes1 all-classes2

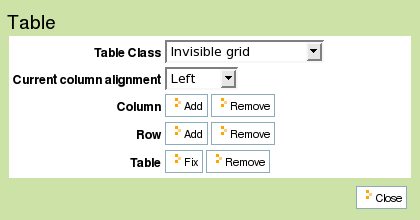

In previously added table there is still a possibility to change a table class, column alignment, add or remove columns and rows. Insert Table dialog gives you this chance:

table-dialog-change

Some table classes do not keep lines between cells in a table after saving the document. So, your table may look not clear and accurate. To make the margin visible at least between rows you can use different cell classes:

cell-class

first - odd row, second - even row, third - odd row... As a result you will get a table with white and blue rows alternate one another. What concerns margins between columns, to make them visible chose table class Fancy listing or Subdued grid. In the end you will get such a clear table:

Col 01 Col 11 Col 21 Col 31


















With the following HTML code generated:



<table class="listing">

<thead> <tr> <th>Col 01</th>

<th>Col 11</th>

<th>Col 21</th>

<th>Col 31</th> </tr> </thead>

<tbody>

<tr class="odd">

<td></td> <td></td> <td></td> <td></td>

</tr>

<tr class="even">

<td></td> <td></td><td></td> <td></td>

</tr>

<tr class="odd">

<td></td> <td></td> <td></td> <td></td>

</tr>

<tr class="even">

<td></td> <td></td> <td></td> <td></td>

</tr>

</tbody>

</table>

Kupu allows setting paragraph styles within table cells. Different paragraph style can be set for every separate table cell. For example, let's take our previously created 2*3 table with numbers and choose different styles for each cell:

heading1 heading2 heading3
one

two

three

four

five

six



Thus, new elements of HTML code, indicating paragraph style, are inserted between <td>...</td>:

<table class="plain">

<thead> <tr> <th>heading1</th>

<th>heading2</th>

<th>heading3</th> </tr> </thead>

<tbody> <tr> <td>one</td>

<td>

<h2>two</h2>

</td>

<td>

<pre>three</pre>

</td> </tr>

<tr> <td>

<h3>four</h3>

</td>

<td>five</td>

<td>

<p class="discreet">six</p>

</td> </tr>

</tbody>

</table>
